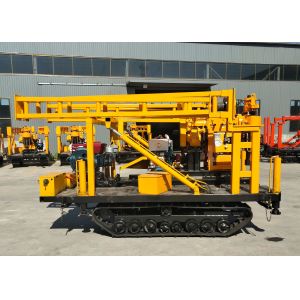

Customized Capacity Crawler Track Undercarriage For Mobile Drilling Machine

This high-performance crawler track undercarriage is constructed from high-strength alloy steel and features sealed track chains. The track shoe is securely fixed to the rail joint with high-strength bolts, while the chain rail joint and rail are precision-fitted with chain rail sleeves using interference fit technology.

Key features include:

• 135mm pitch track with special rubber ring sealing
• Protection against sand, water, and corrosive media infiltration
• Enhanced durability for rock roll operations
• Prevents excessive wear and snake-like track deformation

Crawler tracks are available in two structural types:

• Metal Pin Hinge Type: Simple design with direct dry friction between pin and pin hole, resulting in faster wear and shorter service life.
• Metal Rubber Hinge Type: Available in single-pin or double-pin configurations. Features rubber collars vulcanized on metal pins for reduced noise, longer lifespan, and elimination of direct friction.

Rubber Crawler: Ideal for small light industrial and construction machinery (1-4 tons), particularly in small drilling operations.

Steel Track: Offers broader application range and longer service life. Comprises steel track, shoe wheel, guide wheel, roller, chassis, and traveling reducers for precise movement control.

• Clean machine after each shift to remove debris from tracks
• Inspect and tighten all bolts, replace damaged components
• Check for oil leaks and hose condition
• Monitor and replace filter elements regularly
• Maintain proper hydraulic oil levels
• Clean cooler with special agent every six months

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
